B.S. SHORT LINK CHAIN

SIZE				PROOF LIMITED	M.B.S.	N.W.／200FT(KG)

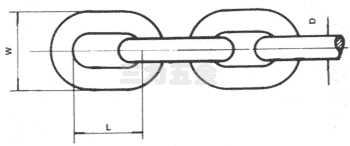

D		L	W
IN	MM	MM	MM	KG	KG	S.C.	H.D.G
1/8	3.20	16	12	200	400	11.40	11.74
5/32	4.00	18.5	14.5	300	600	18.60	19.00
3/16	4.70	19	17	400	800	26.20	27.00
7/32	5.50	20	19	550	1100	36.80	38.00
1/4	6.35	22	21	750	1500	50.00	51.50
5/16	7.94	26	26	1200	2400	80.00	82.40
3/8	9.50	28	32	1700	3400`	122.00	125.70
7/16	11.11	33	36	2300	4600	164.00	169.00
1/2	12.70	39	43	3000	6000	210.00	216.00
5/8	15.80	45	53	4700	9400	334.00	344.00
3/4	19.00	55	63	6800	13600	485.00	499.00
7/8	22.20	64	74	9250	18500	656.00	675.00
1	25.40	73	84	12150	24300	870.00	896.00

B.S. MEDIUM LINK CHAIN

SIZE				PROOF LIMITED	M.B.S.	N.W. ／200FT(KG)
D		L	W
IN	MM	MM	MM	KG	KG	S.C.	H.D.G
1/8	3.20	20	12	200	400	10.80	11.00
5/32	4.00	23	15	300	600	17.40	18.00
3/16	4.70	25	18	400	800	24.40	25.00
7/32	5.50	26	19	550	1100	34.00	35.00
1/4	6.35	26	23	750	1500	48.80	50.00
5/16	7.94	32	29	1200	2400	76.00	78.00
3/8	9.50	35	35	1700	3400`	111.00	114.00
7/16	11.11	38	38	2300	4600	154.00	158.00
1/2	12.70	50	45.5	3000	6000	194.00	200.00
5/8	15.80	60	56.7	4700	9400	303.00	312.00
3/4	19.00	76	69	6800	13600	432.00	445.00
7/8	22.20	90	80	9250	18500	586.00	603.00
1	25.40	105	95	12150	24300	770.00	792.00

B.S. LONG LINK CHAIN

SIZE				PROOF LIMITED	M.B.S.	N.W. KG/200FT
D		L	W
IN	MM	MM	MM	KG	KG	S.C.	H.D.G
1/8	3.20	23	12	200	400	10.40	10.70
5/32	4.00	27	15	300	600	16.60	17.50
3/16	4.70	31	17	400	800	22.40	23.30
7/32	5.50	32	19	550	1100	32.00	33.00
1/4	6.35	33	21	750	1500	43.50	44.80
5/16	7.94	48	31	1200	2400	68.00	70.00
3/8	9.50	60	37	1700	3400`	96.00	99.00
7/16	11.11	71	41	2300	4600	126.00	129.00
1/2	12.70	85	48.5	3000	6000	167.00	172.00
5/8	15.80	114	61.5	4700	9400	256.00	264.00
3/4	19.00	125	75	6800	13600	381.00	392.00
7/8	22.20	140	88	9250	18500	527.00	543.00
1	25.40	155	100	12150	24300	696.00	716.00
